Transformers are designed for long, reliable service, but reliability does not come from the nameplate rating alone. A unit can be correctly manufactured and still fail prematurely if the load, installation, protection, or environment exposes it to stresses that were not considered in the original specification.
Most transformer failures also have more than one cause. A blocked ventilation path may raise winding temperature. The higher temperature accelerates insulation ageing. A later switching surge or short circuit then acts on insulation that has already lost part of its strength. The final event may appear to be the cause, even though deterioration had been developing for years.
Understanding that sequence allows asset owners to address the mechanism behind a warning sign rather than simply returning the unit to service after the immediate symptom disappears.
Why Dry-Type Transformers Fail
A transformer fails when one or more parts can no longer perform their electrical, thermal, or mechanical function. The result may be a winding short circuit, insulation flashover, overheated connection, core fault, unacceptable voltage performance, or protective-device operation.
Failure does not always mean a dramatic event. Insulation tracking, recurring temperature alarms, abnormal sound, or a terminal that repeatedly overheats can make a transformer unreliable before complete breakdown. These conditions are evidence to investigate, not independent maintenance problems.
Thermal Overstress and Insulation Ageing
Load current produces winding losses, while magnetic excitation produces core losses. Those losses become heat. Under the transformer’s rated service conditions, the winding design, insulation system, ventilation, and enclosure are coordinated so that this heat can be dissipated without exceeding the intended temperature limits.
Overloading increases conductor losses approximately with the square of current. Phase imbalance can overheat one winding even when total three-phase kVA appears acceptable. Harmonic currents from variable-frequency drives, uninterruptible power supplies, rectifiers, and other nonlinear loads add eddy-current and stray losses that a fundamental-frequency load reading may not reveal. High ambient temperature, restricted clearances, blocked louvres, failed fans, dust accumulation, and high altitude can then reduce the transformer’s ability to reject the resulting heat.
The practical consequence is accelerated insulation ageing and a reduction in dielectric and mechanical strength. The familiar statement that every 10 °C increase halves insulation life is only a broad rule of thumb; the actual ageing rate depends on the insulation system and time-temperature history. IEC 60076-12 provides a loading guide for estimating insulation ageing in applicable dry-type transformers as a function of operating temperature, time, and loading.
Prevention starts with correct load assessment and thermal design. Load current, phase balance, harmonics, ambient temperature, altitude, enclosure, airflow, and duty cycle should be established. Rex’s guide to thermal management in dry-type transformers explains why insulation class alone does not compensate for an application that runs hotter than the design basis.
Electrical and Dielectric Stress
Transformer insulation must withstand normal operating voltage as well as the transient stresses expected on the system. Lightning, switching events, ground faults, resonance, incorrect grounding, and operation above rated volts per hertz can impose very different voltage distributions across a winding.
A fast-front transient may concentrate voltage across the first turns of a winding instead of distributing it evenly. Repeated exposure can weaken turn insulation or initiate localized partial discharge. A sufficiently severe event can cause an immediate turn-to-turn fault or flashover. Proper basic impulse level selection, insulation coordination, surge protection, grounding, and lead arrangement therefore have to be considered as one system. Rex’s article on lightning and surge protection for transformers explains why installing an arrester is not enough if its protective level or connection impedance is unsuitable.
Partial discharge is a localized discharge that bridges only part of an insulation system. It may occur in voids, at interfaces, or around high electric-field concentrations. Persistent activity can erode insulation until breakdown develops. Not every dry-type transformer requires continuous monitoring; the need depends on voltage class, construction, criticality, history, and symptoms. Rex’s guide to partial discharge in dry-type transformers explains this distinction.
Short Circuits and Mechanical Damage
An external short circuit produces high current and intense electromagnetic forces within the windings. Axial and radial forces can compress, stretch, tilt, or displace conductors and supports. The event also produces rapid heating. A transformer may survive electrically yet sustain movement that changes its clearances or reduces its ability to withstand the next fault.
Severity depends on available fault current, impedance, fault duration, winding geometry, bracing, and protection-clearing time. Correct overcurrent protection limits damage but does not replace adequate mechanical design. Rex’s discussion of short-circuit testing of transformers explains how thermal and mechanical withstand are evaluated.
Mechanical damage can also begin before energization. Impact during transportation, lifting from the wrong points, failure to remove shipping restraints, cable strain on terminals, loose mounting, or vibration from nearby equipment can disturb components or abrade insulation. Commissioning checks should therefore confirm both electrical connections and physical condition before the transformer is placed in service.
Moisture, Dust, and Chemical Contamination
Dry-type construction eliminates insulating-liquid leaks, but it does not make the transformer immune to its surroundings. Dust can obstruct cooling passages and form an insulating layer that traps heat. When dust contains conductive or hygroscopic material, it can absorb moisture and reduce surface resistance. Salt, metal particles, cement dust, oils, and corrosive vapours can further increase the risk of tracking, corrosion, and surface discharge.
The correct response is not simply to choose the most enclosed transformer available. An enclosure must keep out the expected contaminant while still providing the cooling required by the design. Outdoor exposure, washdown, condensation, rapid temperature change, and corrosive atmospheres may require construction beyond a standard ventilated unit.
Inspection and cleaning intervals should reflect the environment and follow the manufacturer’s instructions and safe de-energized work procedures. Solvents, uncontrolled compressed air, or abrasive methods can damage insulation or drive contamination deeper into windings.
Connections, Grounding, and Installation Errors
Loose, misaligned, or oxidized connections increase contact resistance. Because the connection carries load current, even a small resistance increase can create a concentrated hot spot that discolours insulation, anneals hardware, damages a terminal, or develops into arcing. Thermography under representative load is useful because it shows temperature patterns while current is flowing. The image still has to be interpreted against load level, phase balance, emissivity, and comparable connections.
De-energized inspection can then establish whether the problem is contamination, damaged hardware, conductor strain, or an improperly made joint. Connection work should use the manufacturer’s torque values and procedures; indiscriminate retightening can damage hardware or conceal the reason a joint moved.
Incorrect taps, supply voltage, phase connections, grounding, bonding, or protection settings can expose the transformer or downstream system to unintended stress. Rex’s transformer commissioning guide outlines the checks that should be completed before initial energization.
Design, Manufacturing, and Application Mismatch
Manufacturing defects are not the explanation for every failure, but poor joints, insulation voids, inadequate clearances, contamination, or incorrect connections can cause early problems. A controlled process uses traceable materials, verified assembly procedures, and the required electrical tests to identify nonconformities before shipment.
Factory testing must be stated precisely. CSA C9:17 (R2022) addresses dry-type transformers within its defined scope, while IEEE and IEC documents cover different requirements, applications, and test methods. A broad statement that a transformer “complies with IEEE C57 and IEC 60076” is not meaningful unless the applicable document, edition, scope, ratings, and required tests are identified.
A transformer can also be well built but wrong for its duty. Motors, drives, rectifiers, cyclic loads, high inrush, harmonic-rich systems, unusual transients, elevated ambient temperature, and contaminated locations may require application-specific impedance, thermal capacity, insulation, shielding, enclosure, or winding construction. Reliability begins by defining these conditions before design, not by adding a generic percentage to the kVA.

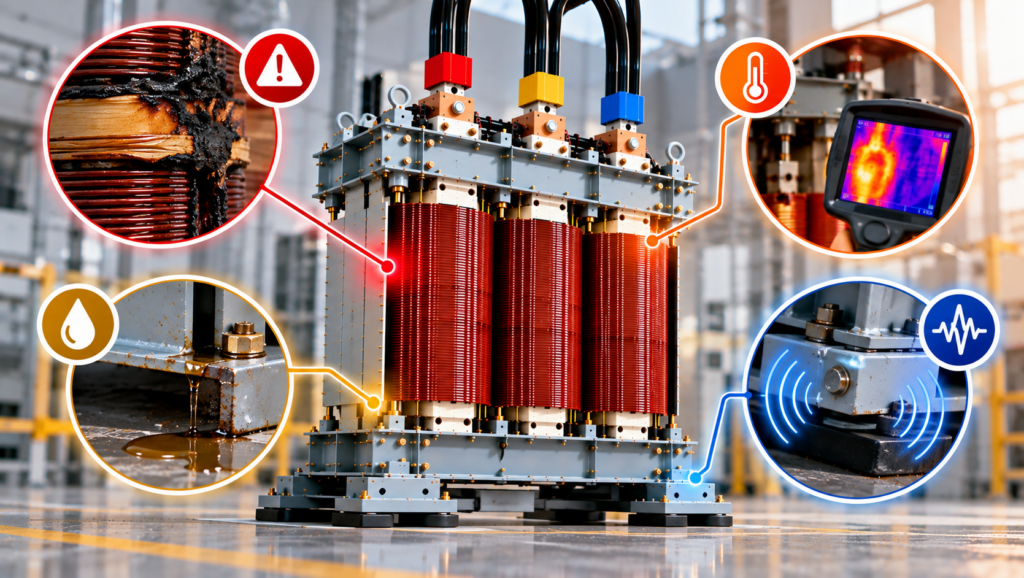

Warning Signs and What They Can Indicate
No single symptom proves that a transformer has a particular fault. Warning signs are most useful when load, temperature, sound, test results, and operating history are evaluated together. A new hot spot may result from a loose connection, phase imbalance, blocked airflow, overload, or an internal defect. Changes in sound or vibration may be associated with loose core hardware, mounting resonance, overexcitation, harmonic loading, or winding movement. Repeated protective-device operation may point to an internal transformer fault, an external system fault, energization inrush, overload, or incorrect protection coordination.
Tracking marks, carbonization, an ozone odour, or visible discharge can indicate surface contamination or dielectric deterioration and require prompt investigation. Changes in winding resistance, turns ratio, insulation resistance, or other diagnostic results are most meaningful when the test method and temperature are controlled, and the results are compared with a reliable baseline.
An unexplained alarm, trip, or physical change should not be addressed by repeatedly re-energizing the transformer. The unit should be placed in a safe condition and evaluated by qualified personnel using the manufacturer’s instructions and a test plan suited to the suspected failure mechanism.
Building an Effective Prevention Program
Prevention combines correct specification, commissioning, protection, monitoring, and maintenance. Operating records should capture load, phase balance, available temperature data, protective-device events, and significant load changes. Thermographic surveys should be performed while the transformer is energized and carrying a representative load, under the facility’s energized-work requirements.
Visual inspection, cleaning, connection assessment, and electrical testing must be planned around transformer construction, voltage class, criticality, environment, and history. Insulation resistance, winding resistance, turns ratio, power-factor or dissipation-factor measurement, and partial-discharge testing each answer different questions. Applying every test at a fixed interval can add cost without improving diagnosis, while performing a test with unsuitable voltage or procedure can place the insulation at risk.
IEEE C57.94-2025 provides recommendations for the operation and maintenance of dry-type distribution and power transformers. Rex’s transformer maintenance checklist can help translate those principles into a site program, but intervals and methods still have to reflect the installation.
Conclusion
Transformer failure is usually the end of a sequence, not an isolated event. Excess heat weakens insulation. Contamination reduces surface resistance and restricts cooling. Transients act on dielectric weak points. Short circuits impose mechanical forces, and poor connections create localized heating. When these stresses overlap, a transformer that appears satisfactory by kVA alone may have little remaining margin.
The most effective prevention strategy is therefore application-specific. Define the load and environment correctly, coordinate insulation and protection with the system, commission the installation carefully, and investigate changes against baseline data. These steps do more than identify a fault early; they reduce the stresses that allow the fault to develop.
