Ever wonder how gadgets keep you safe from shocks or how hospitals ensure clean power for life-saving tech? The answer is often the isolation transformer. More than a standard transformer, it acts as both a safety net and a noise filter for your electronics.
An isolation transformer’s main job is to keep two circuits electrically separate while still letting power flow between them. It transfers energy through a magnetic field, not a direct wire connection. This makes it different from a regular power transformer, which mainly changes voltage up or down to deliver power where needed.
What is the Purpose of an Isolation Transformer?

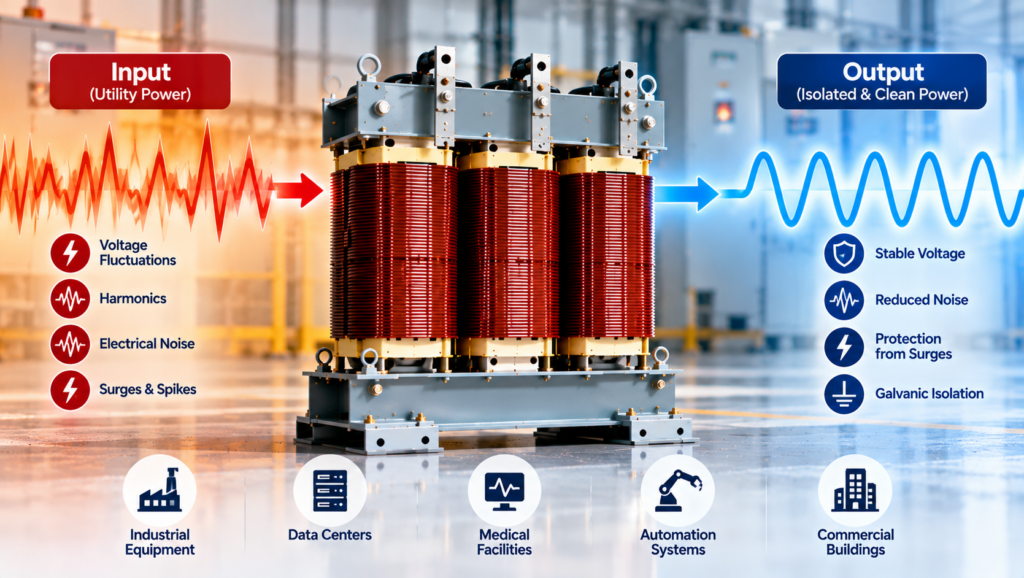

The main purpose of an isolation transformer is to create a solid electrical barrier between the input and output circuits. Why is this so important? Let’s dive in.
First, it’s a huge safety upgrade, stopping direct contact with dangerous electrical parts. In a normal power setup, one wire (usually the neutral) is hooked up to the ground. So, if you touch a live wire accidentally, you become part of the circuit, and that can be a very bad shock. An isolation transformer’s output circuit is “floating,” not grounded. Touch a wire, and nothing happens, because there’s no path for the electricity to flow through you. This is super important in places where people are working with electricity a lot, like hospitals or factories.
Second, isolation transformers are great at cutting down on electrical noise and interference. Power lines are full of buzzing, hissing, and random spikes from everything plugged in, from motors to microwaves. Think of the hum through the speakers as a result of interference. That noise can mess with sensitive equipment, causing errors or even crashes. The separate coils inside the isolation transformer stop that noise from getting through, giving you a nice, clean power supply. It’s like a power wash for the electricity.
What is the Function of an Isolation Transformer?
A key part of understanding the function of an isolation transformer is its typical 1:1 turns ratio. Basically, it has the same number of wire loops on both sides. This means the voltage going in is (usually) the same as the voltage coming out (e.g., 120V in, 120V out). The cool part is, it sends that voltage across without any direct connection, which is what makes it so safe.
But it does more than just pass the voltage straight through. Here’s how it works:
Breaking Ground Loops: Ever hear a hum in your audio system? That’s often a ground loop, caused by a circuit being connected to the ground in more than one place, creating a path that is an unwanted current. An isolation transformer stops this by creating a completely separate circuit, eliminating the hum. It’s like fixing a tangled headphone cord.
Filtering Noise from Sensitive Equipment: The way the coils are linked together magnetically acts like a super-effective filter, blocking nasty high-frequency noise, voltage spikes, and other electrical garbage from reaching your devices. This is essential for medical devices, computers, and anything else that needs clean power to work right. Think high-tech power conditioner!
Protecting Devices and Users from Electric Shocks: Like we were saying earlier, that “floating” output circuit gives you a barrier against shocks, keeping everyone safe. By completely separating the circuits, there’s no chance of accidental grounding through a person’s body. It keeps everyone safe from harm.
Why Use an Isolation Transformer?
What do isolation transformers bring to the table? Let’s break down the benefits, which will go on to show why to use an isolation transformer.
Electrical Safety: Number one, it prevents electric shock. It’s a safety net for anyone working with electrical equipment and especially important for protecting patients in medical settings. Extra peace of mind!
Noise Suppression: Clear data depends on clean power, and isolation transformers filter out electrical noise in sensitive environments like hospitals, data centres, and labs. Cleaner data, fewer errors!
Equipment Protection: Power surges, voltage spikes, and harmonics can all damage sensitive electronics. Isolation transformers act as a buffer, extending the life of your valuable equipment. A worthy investment, if you ask.
Ground Loop Elimination: Say goodbye to that annoying hum or buzz in your audio and video systems. Isolation transformers clean up the signal for a much better listening and viewing experience. You will hear only the sounds that are meant to be heard
Stability in Demanding Industrial Applications: In factories and other industrial settings, machinery like motors and welding equipment can create a lot of electrical noise. Isolation transformers keep sensitive control systems and computer numerical control (CNC) machines running smoothly. They will always reliably work.
Main Applications: Where Is an Isolation Transformer Used?
Isolation transformers are essential in many different fields. Getting an idea of the uses of an isolation transformer highlights its importance in various industries.
Medical Equipment: Hospitals can’t do without isolation transformers for MRI machines, surgical tools, patient monitors, and so on. They protect patients and staff from electrical hazards, which is crucial during procedures. Safety is more important than the money saved.
IT/Data Centres: Servers, networking gear, and other crucial IT equipment need clean, stable power. Isolation transformers protect this hardware from power problems, ensuring that everything is always on and data is safe. No downtime here.
Audio and Video Equipment: Audio enthusiasts and video pros rely on isolation transformers to prevent ground loops and cut out noise, guaranteeing crystal-clear signal transmission.
Industrial Machinery: Isolation transformers are crucial for the overall protection of a sensitive machine from electrical problems. With this protection, that ensures more accurate results can be achieved.
Renewable Energy Systems: They’re used in solar inverters and UPS systems to boost safety and prevent ground faults. This ensures that the whole system is stable and safe.
Comparison: Isolation Transformer vs. Power Transformer
What makes a power transformer different from an isolation transformer? Their main jobs mostly come down to their components. Power transformers are designed to have adjustments in voltage to adjust voltage either upwards or downwards. Isolation transformers are primarily designed to keep the separation in circuits between electrical devices.
Key Takeaways
An isolation transformer and a power transformer have two separate goals. The end result is that the isolation transformer is able to provide separation, whereas the latter is able to change voltage levels.
These devices have three separate functions: safety, cutting down on electrical noise, and also ground loops.
There is not a direct electrical connection, so it has a safe output, where there is a 1:1 turns ratio.
Some important benefits come down to a protection against electric shocks for everyone and everything involved, removal of suppression, and stability in any type of application.
Several different types of industries must have machines like these set up, so there are no questions regarding signals and quality.
