In dry type transformer design, thermal performance often receives the most attention. However, from a reliability and system protection perspective, short-circuit withstand capability is frequently the more critical parameter.
Transformers rarely fail under steady-state loading. They fail during faults.
A downstream short circuit subjects the transformer to extremely high currents within milliseconds. Those currents generate intense mechanical forces in the windings. If the transformer is not mechanically designed to withstand those forces, permanent deformation, insulation damage, or catastrophic failure can occur — even if the unit is thermally adequate for its rating.
This article examines how short-circuit forces develop in dry type transformers, what governs mechanical withstand capability, and what engineers should evaluate during specification.
Fault Current and Mechanical Force
When a secondary fault occurs, the transformer delivers current limited primarily by its impedance and the upstream source impedance. The initial symmetrical short-circuit current can be approximated as:
Isc= IFL / Zpu
Where IFL is full-load current and Zpu is transformer per-unit impedance.
For a transformer with 5.75% impedance:
Isc≈1/0.0575≈17.4 puI
This means approximately 17 times rated current under symmetrical conditions. The first-cycle peak current may reach approximately 2.6 times the symmetrical RMS value due to DC offset.
The critical point is that mechanical force is proportional to the square of the current:
F ∝ I2F
A 17× increase in current produces nearly 300× the mechanical force compared to normal operating conditions. This is fundamentally a mechanical shock event, not a thermal one.
Nature of Forces Inside the Transformer

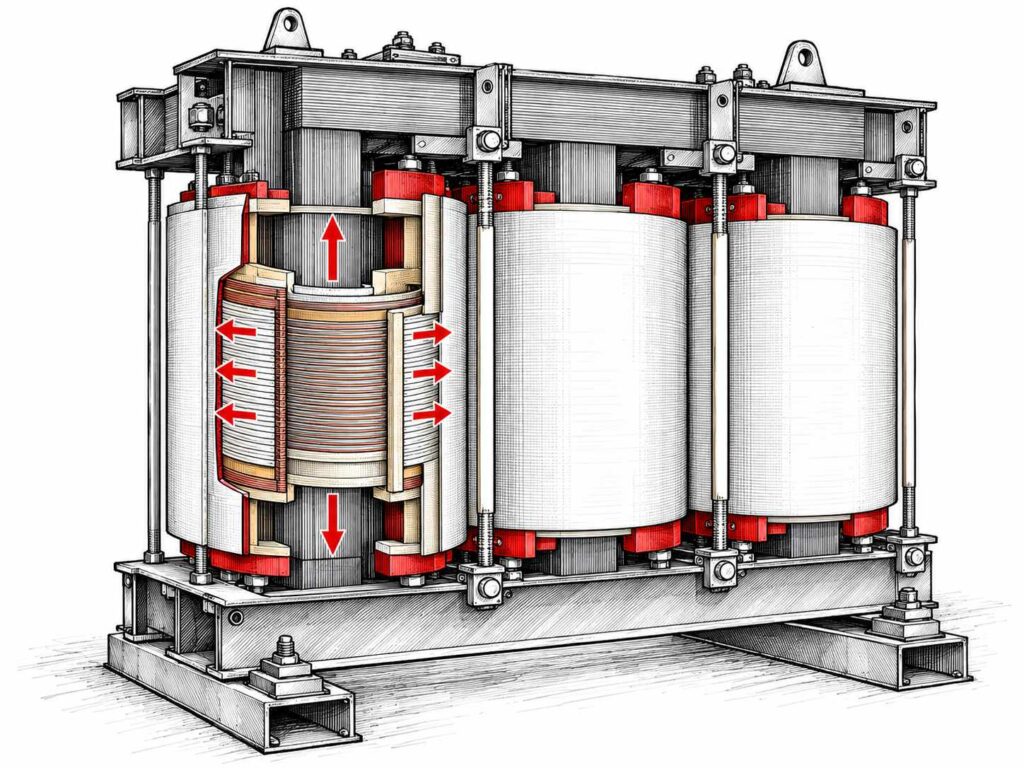

Short-circuit forces act in two principal directions: radially and axially.
Radial forces develop between concentric windings. These forces create hoop stress that tends to expand or compress the coils. In cast resin transformers, excessive radial stress can lead to cracking of the encapsulation or permanent deformation of the winding.
Axial forces act along the vertical axis of the windings due to leakage flux interactions. These forces can compress winding sections together or drive them apart, potentially causing spacer displacement or turn movement.
In oil-filled transformers, the insulating liquid provides some damping and hydrostatic support. Dry type transformers do not have this benefit. Their mechanical integrity depends entirely on conductor geometry, resin bonding (in VPI/VPE designs), epoxy encapsulation (in cast resin designs), axial clamping pressure, and the rigidity of the core and frame assembly.
Standards and Qualification
Short-circuit withstand capability for dry type transformers is addressed in:
- IEEE C57.12.01 (General Requirements for Dry Type Transformers)
- IEEE C57.12.91 (Test Code)
- IEC 60076-5 (Ability to Withstand Short Circuit)
These standards define the mechanical duty the transformer must survive without permanent deformation or insulation failure. Not all transformers are individually short-circuit tested; many designs are validated by similarity to previously tested units.
For critical installations or locations with high available fault current, engineers may request documented short-circuit test data to confirm design robustness.
Impedance as a Mechanical Design Variable
Transformer impedance is often selected based on voltage drop and coordination studies. However, it directly controls short-circuit forces.
Because fault current is inversely proportional to impedance and force scales with the square of current, small impedance reductions produce disproportionately large increases in mechanical stress.
For example, reducing impedance from 6% to 4% increases symmetrical fault current from roughly 16.7 pu to 25 pu. The corresponding mechanical force more than doubles.
This trade-off is frequently overlooked during value engineering exercises. Lower impedance improves voltage regulation but significantly increases mechanical stress during faults. In facilities with high available fault current, impedance selection should be evaluated from both system and mechanical perspectives.
Mechanical Design Considerations in Dry Type Units
Short-circuit performance in dry type transformers depends on structural integrity of the windings and support system. Robust designs typically incorporate rigid conductor arrangements, controlled axial clamping pressure, reinforced spacer systems, and mechanically stable resin systems that resist cracking under transient stress.
In cast resin transformers, epoxy formulation and curing control influence long-term crack resistance. In VPI or VPE designs, the bond between conductor and insulation system is critical to prevent movement under high electromagnetic forces.
The mechanical rigidity that makes dry type transformers attractive for indoor and environmentally sensitive installations also means that internal stress must be carefully managed during fault events.
Repeated Fault Exposure and Latent Damage
Standards assume a defined short-circuit event. In practice, transformers may experience multiple downstream faults, motor-related transients, or protection mis-coordination.
Even when a transformer appears to “survive” a fault, internal winding displacement can initiate insulation degradation that manifests months later as partial discharge activity, increased audible noise, or localized overheating.
For medium and large kVA installations, post-fault testing such as insulation resistance measurement, turns ratio verification, and partial discharge assessment may be warranted before returning the unit to full service.
Practical Specification Guidance
When applying dry type transformers in systems with substantial available fault current, short-circuit capability should be treated as a core design parameter rather than a compliance checkbox.
At minimum, the specifying engineer should verify the available fault current at the installation point, confirm the selected impedance supports both system coordination and mechanical durability, and ensure compliance with IEEE C57 short-circuit requirements. In mission-critical facilities such as data centers or industrial plants, documented short-circuit test validation may be appropriate.
Avoid reducing impedance solely to improve voltage drop performance without evaluating the mechanical implications.
Thermal Rating vs. Mechanical Withstand
Thermal overload capability and short-circuit withstand capability address different failure modes.
Thermal design protects the transformer from insulation aging due to elevated temperature. Short-circuit design protects the transformer from instantaneous mechanical destruction.
A transformer may be thermally robust yet mechanically vulnerable during a high-magnitude fault. Both aspects must be considered in responsible engineering practice.
Conclusion
Short-circuit withstand capability in dry type transformers is fundamentally a mechanical design issue driven by system fault current and transformer impedance.
Because fault forces scale with the square of current, even modest impedance changes can dramatically alter internal stress levels. In dry type construction — where rigid windings replace oil-supported structures — axial clamping, conductor design, resin integrity, and structural bracing determine whether the unit maintains internal alignment after a fault.
Short-circuit performance must be evaluated during specification, not after a failure investigation.
Mechanical integrity under fault conditions is not an optional attribute. It is a defining element of transformer reliability in real-world power systems.
