A dry-type transformer can remain in service while its operating margin is steadily disappearing. Dust restricts airflow, a loose terminal develops localized I²R heating, or a change in room ventilation raises the temperature of the cooling air. The unit may continue carrying load, but the insulation system is now under greater thermal stress and a minor maintenance issue can become an outage.
A transformer maintenance checklist should therefore do more than confirm that an enclosure was opened once a year. It should connect observed conditions with the electrical, thermal, mechanical, or environmental mechanism behind them, then define what needs to be cleaned, tested, monitored, corrected, or escalated.
This guide applies primarily to ventilated, vacuum pressure impregnated (VPI), vacuum pressure encapsulated (VPE), and cast-coil dry-type transformers. Construction affects how contamination, moisture, and cooling problems develop, so use the checklist with the manufacturer’s instructions, site safety procedures, and applicable electrical requirements. See Rex Power Magnetics’ comparison of VPI and cast-coil transformers for additional construction context.
Why Transformer Maintenance Matters
Dry-type transformers have no continuously rotating internal parts, but they remain exposed to electrical, thermal, mechanical, and environmental stress. Load current produces winding losses, faults impose mechanical forces, and the surrounding environment affects insulation surfaces and cooling paths.
Maintenance is valuable because it identifies changes before they consume thermal or dielectric margin. Clean air passages and sound connections help the unit operate near its intended temperature rise. Inspections can also reveal contamination, restricted ventilation, abnormal loading, connection heating, moisture entry, and insulation damage before they produce nuisance tripping or permanent damage.
See Rex’s guide to transformer lifespan for the relationship between design, load, environment, and service life.
Standards Guide the Program, but the Site Sets the Interval
Three documents are particularly relevant:
- IEEE C57.94-2025 provides recommended practice for the installation, application, operation, and maintenance of dry-type distribution and power transformers.
- CSA C9:17 (R2022) applies to single-phase and polyphase dry-type transformers, including units with cast or resin-encapsulated coils.
- NEMA ST 20-2021 covers dry-type transformers for general commercial, institutional, and industrial applications.
IEEE identifies C57.94-2015 as superseded by the 2025 edition. CSA currently lists C9:17 as reaffirmed in 2022, while ANSI lists NEMA ST 20-2021 as the most recent edition.
These documents do not create one universal inspection frequency. A clean indoor unit carrying a stable load does not require the same attention as one exposed to conductive dust, humidity, corrosive vapours, repeated overloads, or critical-process consequences.
These are practical starting points, not standard-mandated limits. Adjust the interval using the manufacturer’s recommendations, enclosure type, loading and temperature history, previous findings, system criticality, and outage consequences.

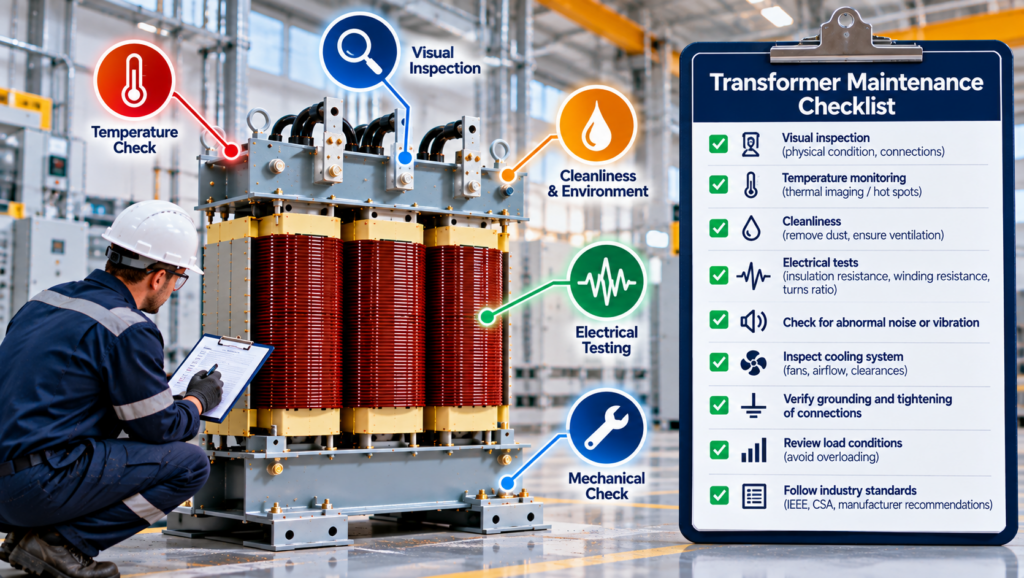

Essential Transformer Maintenance Checklist
Below is a structured checklist derived from industry practice and Rex Power Magnetics’ engineering recommendations. It applies primarily to ventilated and VPI/VPE dry-type power transformers.
-
Establish the Baseline Before Shutdown
Maintenance findings are easier to interpret when the operating condition is known. Before shutdown, record representative load, phase currents, ambient temperature, winding or sensor temperature, fan status, and unusual sound or odour.
Before opening the enclosure:
- Review the transformer nameplate, drawings, manufacturer instructions, previous reports, and outstanding corrective actions.
- Confirm that qualified personnel, permits, personal protective equipment, and correctly rated test instruments are available.
- De-energize and isolate the transformer, apply lockout/tagout, and verify absence of voltage.
- Discharge or ground components where required.
- Confirm that test equipment is suitable for the voltage class and within calibration.
Check the nameplate against the connected system and recorded tap position. Our transformer nameplate guide explains the ratings and connection information that should be confirmed before testing.
Thermographic scanning is different because the transformer must normally be energized and carrying a representative load. Complete it separately under the facility’s energized-work requirements.
-
Inspect for Contamination, Movement and Connection Heating
A visual inspection often reveals the mechanism behind a developing problem. Dust on windings and inside cooling ducts acts as a thermal barrier and can absorb moisture. Oxidized or loose joints increase contact resistance, producing localized heating.
Inspect:
- Coils, core surfaces, bus bars, supports, and enclosure surfaces for dust, residue, moisture, corrosion, or foreign material.
- Insulation for cracking, erosion, carbon tracking, discolouration, or other surface damage.
- Terminals and bus connections for oxidation, movement, looseness, or heat damage.
- Clamps, mounting bolts, winding supports, vibration isolators, barriers, guards, doors, and panels.
- Cable entries, gaskets, louvres, labels, and evidence of pests, condensation, or water entry.
- Any new or increasing noise, vibration, odour, or visible deformation.
A change in sound does not prove an internal winding fault. Loose panels, mounting resonance, core hardware, harmonic loading, and overexcitation can produce similar symptoms. Compare the condition with previous observations and operating load. Rex’s guide to transformer hum explains these mechanisms.
Do not apply a generic torque value to every connection. Use the transformer or connector manufacturer’s specified value and work only while the equipment is safely de-energized.
Cleaning methods must match the construction. A suitable industrial vacuum or manufacturer-approved dry, low-pressure air may be appropriate. High-pressure air can drive contamination deeper into windings, while solvents or wet cleaning methods may damage insulation or leave residue.
-
Use Electrical Tests to Confirm What Cannot Be Seen
Electrical testing is most useful when compared with commissioning values and previous records. Our power transformer testing guide provides additional context.
Insulation resistance. Measure phase-to-phase, phase-to-ground, and primary-to-secondary resistance where applicable, using the recommended test voltage. Sensitive controls, sensors, and surge-protection components may need isolation. A single reading is not a universal pass-or-fail result because temperature, humidity, test duration, transformer size, and insulation construction affect the value.
Transformer turns ratio. A ratio test can identify an incorrect tap setting, open circuit, shorted turns, winding damage, or unexpected phase difference. Compare the result with the nameplate ratio, actual tap position, applicable tolerance, and previous data. Explore Rex’s explanation of transformer turns ratio.
Winding resistance. Resistance testing can reveal deteriorated joints, tap-connection problems, damaged conductors, and phase imbalance. Correct readings for winding temperature before comparing phases or historical results.
Thermographic scanning. Scan terminals, bus and cable connections, enclosure surfaces, cooling paths, fan assemblies, and protective-device connections under a known load. Evaluate a hot connection with load balance, ambient temperature, connection geometry, and previous images.
Grounding, bonding and protection. Confirm that grounding and bonding conductors are present, clean, secure, and consistent with the system design. Document fuse, breaker, relay, alarm, and thermal-device settings. Repeated operation should be investigated rather than addressed by installing a larger device. For more details, see Rex’s guides to transformer grounding and bonding and transformer fuse sizing.
-
Verify the Entire Cooling Path
Restricted airflow is a common avoidable cause of elevated temperature, but the restriction may be outside the transformer. Clean internal ducts cannot compensate for a room that traps hot air or recirculates transformer exhaust toward the intake.
Inspect enclosure openings, cooling ducts, filters, fan guards, auxiliary fans, thermostats, controllers, alarms, and clearance around the enclosure. Remove stored material that obstructs airflow. Confirm that room intake and exhaust ventilation still match the heat released into the space.
Rex’s guides to dry-type transformer cooling and transformer clearance requirements explain why both internal and external airflow matter.
For fan-cooled units, verify that each fan starts at the intended temperature, rotates correctly, operates without excessive vibration, and moves air through the intended path. Confirm staged cooling and alarm functions.
-
Compare Load and Temperature Together
Temperature has meaning only when load and ambient conditions are known. Record phase currents, voltages where applicable, load percentage, ambient temperature, winding or sensor temperature, fan status, time, and the major process loads operating during the measurement.
Compare the results with the nameplate kVA, cooling configuration, temperature-rise rating, insulation class, expected load profile, and previous records. Rex’s guide to transformer insulation classes explains the distinction between insulation capability and specified temperature rise.
Investigate persistent overload, phase imbalance, recurring peak demand, fan or ventilation problems, and a gradual temperature increase under similar load. Harmonic-rich current can raise winding and stray losses even when root mean square current remains within the nameplate rating. A K-factor-rated transformer may be appropriate for some nonlinear loads, but the load spectrum and system requirements still need evaluation.
Critical transformers benefit from permanent temperature sensors, power meters, thermal relays, and remote alarms. Trends reveal seasonal changes, repeated overloads, and slow deterioration that a single annual reading can miss.
-
Treat the Environment as Part of the Application
A transformer selected for a clean electrical room may not remain suitable after the area changes. New processes can introduce conductive dust, chemicals, humidity, salt, or higher ambient temperature. Roof work, plumbing changes, and ventilation modifications can also create new exposure.
Inspect for dust, condensation, water entry, corrosive vapours, damaged coatings, failed gaskets, unsealed cable entries, damaged louvres, restricted working clearance, and room-ventilation changes.
A harsher environment may require improved filtration, a different enclosure, shorter maintenance intervals, or an encapsulated transformer. Marine and coastal applications require particular attention to salt, moisture, corrosion, and enclosure selection.
Documentation Turns Maintenance into Condition History
For each inspection, record the transformer identification and location, date, technician, operating conditions, load and temperature readings, visual findings, cleaning completed, torque checks, electrical test results, thermal images, photographs, components replaced, corrective actions, responsible person, target completion date, and next inspection date.
Compare each record with commissioning data and earlier results. A slowly declining insulation-resistance trend, a terminal becoming progressively hotter at comparable load, or recurring contamination in the same duct may be more significant than one isolated reading.
Consistent records also help separate transformer deterioration from external causes such as overloading, poor ventilation, harmonics, repeated transients, or environmental contamination.
When the Transformer Requires Qualified Evaluation
Routine external observation and housekeeping may be completed by qualified facility personnel. Specialized testing, internal investigation, and interpretation of abnormal results should be handled by experienced transformer technicians or the manufacturer.
Remove the unit from service and follow the facility’s emergency procedure when it is safe to do so if there is smoke, arcing, severe overheating, a burning odour, or visible deformation. Prompt evaluation is also required for:
- New or rapidly increasing noise or vibration.
- Cracked, tracked, eroded, or severely discoloured insulation.
- Evidence of partial discharge, moisture damage, or conductive contamination.
- Repeated temperatures above the expected operating range.
- Declining insulation resistance, abnormal ratio results, or significant winding-resistance imbalance.
- Repeated fuse, breaker, relay, fan-alarm, or thermal-sensor operation.
- Movement of windings, supports, terminals, or buswork.
Rex’s articles on partial discharge and transformer failure mechanisms explain why these symptoms should be investigated before repeated energization.
Conclusion
Dry-type transformer maintenance is not simply a cleaning schedule. It is a condition-assessment process that compares load, temperature, airflow, insulation condition, connection integrity, environmental exposure, and historical test data.
The practical trade-off is between inspection effort and operating risk. A lightly loaded transformer in a clean room may justify a longer interval, while a critical unit in a dusty, humid, harmonic-rich, or high-temperature application may require continuous monitoring and more frequent planned outages. The correct program detects changes before they reduce dielectric, thermal, or mechanical margin.
Rex Power Magnetics designs and manufactures dry-type transformers for commercial, industrial, infrastructure, marine, and specialized applications. When maintenance findings point to recurring overheating, environmental exposure, or a replacement requirement, the operating history should be reviewed together with the new transformer specification.
