When a vacuum or SF6 circuit breaker switches a transformer that’s close-coupled through a short length of cable or bus, the combination can produce voltage transients severe enough to fail the transformer winding insulation. Documented failures across data centers, paper mills, hospitals, ship propulsion systems, oil fields, and mining operations all trace back to the same physics — current chopping and reignition in the breaker, combined with the LC characteristics of the short cable and the transformer, producing transient overvoltages that exceed the transformer’s BIL or its dv/dt withstand capability.
The RC snubber is the standard mitigation. It’s a simple-looking four-component circuit — a surge capacitor, a non-inductive damping resistor, an optional fuse, and a surge arrester — installed at the transformer’s primary terminals. Despite the simplicity, the design rests on real physics and the component values can be calculated directly from the transformer rating and the cable characteristics. This article explains the working principle and walks through a complete sizing example for a 1500 kVA, 4160 V dry-type transformer.
Why the Transient Happens in the First Place
Two breaker behaviours are responsible. Current chopping occurs when the breaker interrupts the load current slightly before the natural current zero. Even modern copper-chromium vacuum interrupters chop 3 to 5 amperes typically. The interrupted current stores energy in the transformer’s magnetizing inductance, and that energy has to go somewhere — it transfers to the small stray capacitance of the cable and transformer winding, producing a high-frequency oscillation across the primary. Reignition occurs when the recovery voltage across the opening contacts exceeds the gap’s dielectric strength before the gap is fully developed. The arc restrikes, the cycle repeats, and successive reignitions escalate the voltage on each pass.
Two transformer limits matter here. The first is BIL — the basic impulse level the insulation can withstand without breaking down. The second is dv/dt — the rate of voltage rise the winding can absorb before turn-to-turn insulation fails. Both have to be respected. A transient that’s within BIL but rises too fast still produces a coil-to-coil flashover in the first few turns of the winding.
Short cable runs make this worse. The shorter the cable, the lower its total capacitance and the higher the surge impedance discontinuity between cable and transformer. Documented case studies have shown that identical transformers on identical breakers fail at 40 feet of cable and survive at 80 feet. The general rule of thumb: cable runs under 200 feet between vacuum breaker and dry-type transformer warrant a switching transient study.

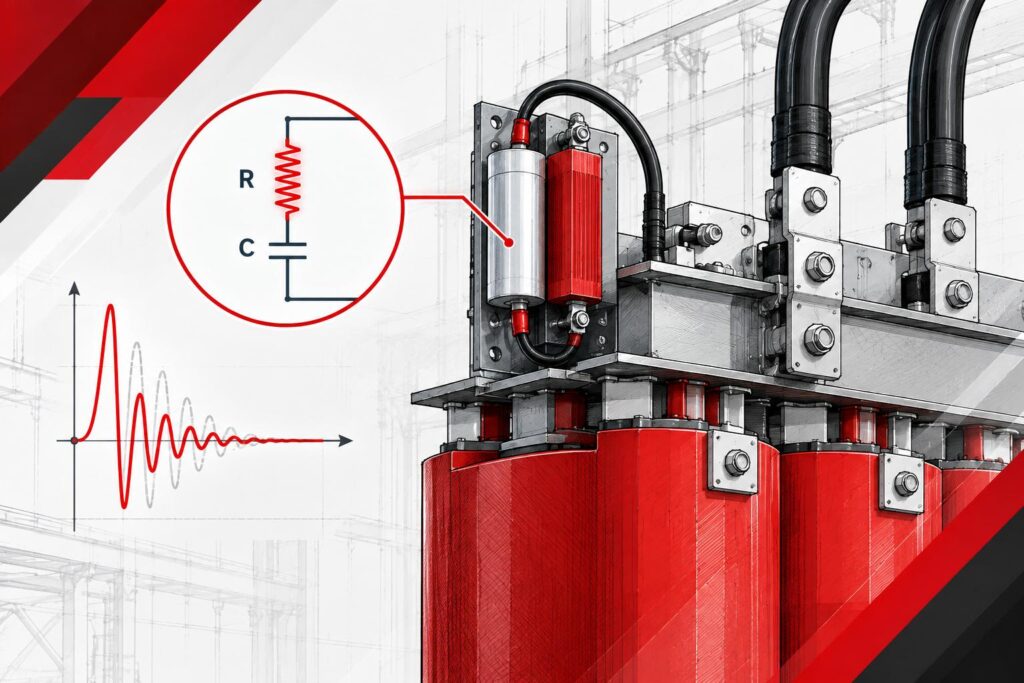

What the RC Snubber Does
Three layers of protection address the three aspects of the transient.
The surge arrester limits peak voltage magnitude. It clamps the voltage at a level below the transformer’s BIL. On its own, an arrester does nothing for dv/dt — it only addresses magnitude.
The surge capacitor slows the rate of voltage rise. By adding capacitance at the transformer terminals, the dv/dt of any transient is reduced proportionally to the added capacitance. A capacitor alone, however, can produce its own problems — it can interact with the breaker to cause virtual current chopping, and it does nothing about the dc offset in the transient.
The damping resistor provides energy dissipation. Without resistance in the circuit, transients ring at their natural frequency with very little damping, because modern high-efficiency transformers carry very little internal resistance. The damping resistor absorbs that energy and brings the oscillation to rest within a few cycles instead of letting it ring continuously.
Together, the resistor and capacitor form the snubber proper. The arrester sits in parallel as backup overvoltage protection. The optional fuse isolates a failed capacitor without losing the breaker circuit.
Component Sizing — A Worked Example
Sizing follows directly from the transformer rating and the connected cable. Consider a 1500 kVA, 4160 V dry-type transformer.
Surge capacitor
Standard surge capacitor values are 1.0 μF for systems under 1 kV, 0.5 μF for 4.16 kV class, and 0.25 μF for 13.8 kV class. These aren’t arbitrary — they’re sized to put the natural frequency of the snubber-and-cable circuit well below the frequencies at which transformer windings show resonance, while keeping the steady-state capacitor current manageable.
For the 4.16 kV transformer, use 0.5 μF. The capacitive reactance at 60 Hz is:
And the steady-state capacitor current at 4.16 kV line-to-line is:
The capacitor must carry a BIL rating matching the transformer’s primary winding BIL.
Damping resistor
The damping resistor value should match the surge impedance of the incoming cable, typically in the 20–100 Ω range for medium-voltage cable. For this example, choose R = 20 Ω.
The resistor must be non-inductive, since the whole point is to damp high-frequency transients — an inductive resistor would store energy at exactly the frequencies the snubber is trying to dissipate. Standard construction uses a thick film of resistive material on a ceramic tube, typically 0.3 to 0.6 m long.
Continuous power dissipation under normal conditions is:
Allow margin for harmonic content and possible overvoltages by sizing to about twice the calculated steady-state current:
The bigger sizing concern is fault energy. If the surge capacitor shorts internally, the resistor carries full line-to-neutral voltage until the fuse clears. Assuming a 0.004-second fuse clearing time:
W = I2Rt = 1202 × 20 × 0.004 = 1.15 kJ
A typical 18-inch ceramic resistor handles 225 W continuous and 119 kJ peak energy, which is well above the calculated requirement.
Time constant check
The RC time constant should fall in the 1 to 10 microsecond range to properly damp the transient frequencies of interest (typically 3 to 25 kHz for short-cable installations).
This lands at the upper end of the recommended range, which is appropriate for a transformer of this size. Smaller transformers with higher natural frequencies generally warrant a shorter time constant.
Fuse selection
A 6 A, 8.3 kV high-speed full-range current-limiting fuse is standard for this voltage class. The fuse isolates the snubber if a capacitor fails internally, preserving the breaker circuit. Without the fuse, a failed capacitor turns the snubber into an effective short across the transformer primary.
Surge arrester
A station-class arrester sized for the system voltage and BIL provides the backup overvoltage clamp. The arrester rating depends on the system grounding configuration and voltage class, and is typically selected to coordinate with the transformer’s protective margin.
When a Snubber Is Required
Not every transformer-and-breaker combination needs a snubber. The conditions that put a system at risk are well-established:
- Cable or bus length between breaker and transformer under approximately 200 feet
- Dry-type transformer (including cast-coil) — or any transformer with low BIL
- Vacuum or SF6 breaker on the primary, capable of current chopping or reignition
- Inductive load being switched — transformer itself, motors, or reactors
- Light or no load on the transformer at the time of switching
When all of these conditions are present, a switching transient study using electromagnetic transient simulation software is strongly recommended to confirm whether a snubber is actually needed and to size the components for the specific circuit. When some are present but the case is borderline, snubbers are often installed anyway as cheap insurance — the cost of a snubber is a small fraction of the transformer replacement cost, let alone the downtime.
Installation Considerations
The snubber must be installed as close to the transformer primary terminals as possible — ideally inside the transformer enclosure. Distance between the snubber and the protected windings reduces effectiveness, because the protective effect relies on capacitance and damping at the winding terminals themselves, not somewhere upstream.
Routing matters at high frequencies. Sharp bends, abrupt cross-section changes, and long ground paths all add stray inductance that defeats the snubber’s purpose. Connections should use flat braided copper for ground returns and follow gradual curves rather than right angles.
Clearances follow standard medium-voltage practice — NEC Table 490.24 phase-to-phase and phase-to-ground minimums apply, and enclosures should meet IEEE C37.20.2.
Conclusion
RC snubbers are a mature, well-understood solution to a real and well-documented problem. The working principle is straightforward — the capacitor slows dv/dt, the resistor damps the oscillation, and the arrester clamps peak voltage — and the component sizing follows directly from the transformer rating and the connected cable.
The most common errors aren’t in the calculation. They’re in skipping the snubber on installations that need one, installing the snubber far from the transformer where it can’t do its job, or treating it as a one-size-fits-all component when the specific circuit really does need a switching transient study. When the design is matched to the application and the installation respects high-frequency layout discipline, the snubber protects the transformer reliably for the life of the equipment.
