Electrical diagrams are the language of power systems, and transformer symbols are a critical part of that language. Whether reviewing single-line diagrams, schematics, or equipment layouts, understanding transformer symbols allows engineers, electricians, and facility managers to quickly interpret system configuration, voltage transformation, grounding, and protection intent.
Transformer symbols may look simple, but subtle variations communicate important information about winding connections, grounding, phase configuration, and function. This article provides a practical guide to common transformer electrical symbols, explaining what they represent and how to interpret them correctly in electrical diagrams.
Why Transformer Symbols Matter
Transformer symbols are not just graphical placeholders. They convey essential design intent, including:
- Whether the transformer is single-phase or three-phase
- How the primary and secondary windings are connected
- Whether a neutral is present and how it is grounded
- Whether the transformer provides isolation or voltage adjustment
Misinterpreting a transformer symbol can lead to incorrect assumptions about grounding, fault behavior, or system compatibility. For this reason, familiarity with common transformer symbols is essential for anyone working with electrical drawings.

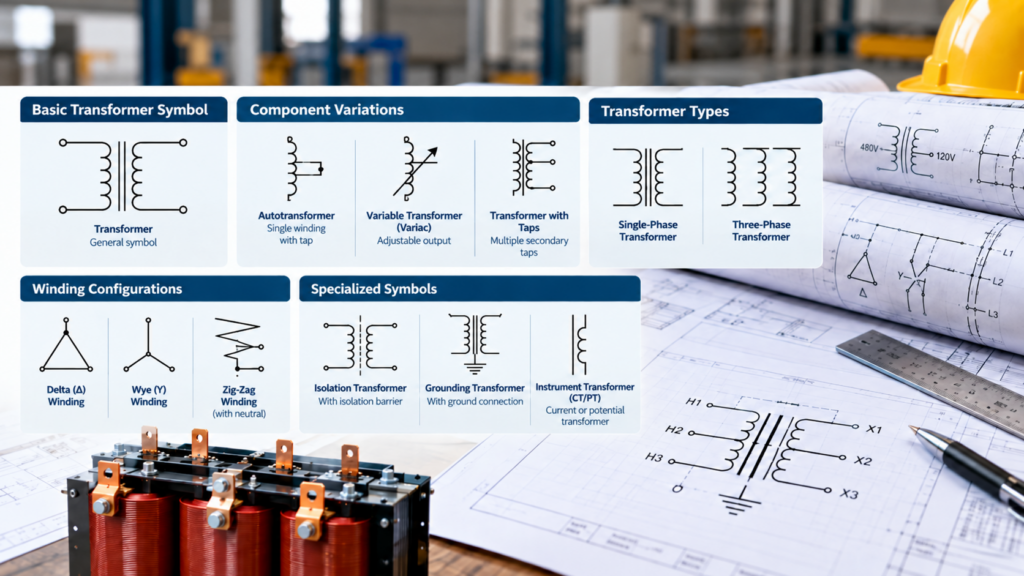

Basic Transformer Symbol
The most fundamental transformer symbol represents two magnetically coupled windings separated by a core.
In simplified form, a transformer is shown as:
- Two parallel coils or windings
- A line or set of lines between them representing the magnetic core
This basic symbol indicates voltage transformation but does not specify phase, grounding, or winding configuration. Additional markings are required to convey that information.
Single-Phase Transformer Symbols
- Single-phase transformers are commonly used in control circuits, lighting systems, and smaller power applications.
A typical single-phase transformer symbol shows:
- One primary winding
- One secondary winding
- Optional indication of a center tap on the secondary
When a center tap is present, it is usually drawn as a connection at the midpoint of the secondary winding, indicating the availability of two equal secondary voltages.
Single-phase symbols are often used in detailed schematics rather than high-level one-line diagrams.
Three-Phase Transformer Symbols
- Three-phase transformer symbols are most commonly shown in single-line diagrams, where each phase is represented by a single line rather than three separate conductors.
A three-phase transformer symbol typically includes:
- A simplified transformer icon
- Labels indicating primary and secondary voltages
- Connection symbols indicating delta or wye configurations
Even though only one line is drawn, the symbol represents all three phases of the transformer.
Delta and Wye Connection Symbols
Transformer winding connections are often shown using delta (Δ) and wye (Y) symbols near the transformer.
- Delta (Δ) indicates that the winding is connected in a closed loop with no neutral
- Wye (Y) indicates that the winding has a neutral point
If the neutral is grounded, a grounding symbol is shown connected to the neutral point. These symbols are critical for understanding system grounding, fault current behavior, and neutral availability.
For example:
Δ–Y indicates a delta-connected primary and wye-connected secondary
Yg–Δ indicates a grounded wye primary and delta secondary
Grounded Neutral Symbols
Grounding is one of the most important pieces of information conveyed in transformer symbols.
A grounded neutral is typically shown by:
- A grounding symbol connected to the neutral point
- A “g” or similar notation next to the wye symbol
This indicates that the transformer creates a grounded reference point, which affects ground-fault protection, surge behavior, and system stability.
Ungrounded or impedance-grounded systems may be shown without a direct ground symbol or with additional components such as grounding resistors or reactors.
Autotransformer Symbols
Autotransformers are represented differently from isolation transformers because they use a single winding with taps rather than separate primary and secondary windings.
An autotransformer symbol typically shows:
- A single winding
- One or more taps along the winding
- Input and output connections on the same winding
The lack of separation between windings visually reinforces that there is no electrical isolation between input and output.
Current Transformer (CT) Symbols
Current transformers are used for metering and protection rather than power transformation.
CT symbols typically include:
- A conductor passing through a core or window
- A secondary winding shown around the core
- Polarity markings such as dots or “H1 / X1” labels
These symbols indicate that the CT output is proportional to current, not voltage, and that correct polarity is important for protection and metering accuracy.
Potential / Voltage Transformer (PT or VT) Symbols
Potential transformers, also called voltage transformers, are used to step down voltage for measurement and protection.
PT symbols resemble small power transformers but are often labeled explicitly as PT or VT. They may include:
- Fuse symbols on the primary side
- Grounding symbols on one side of the secondary
These details indicate that the transformer is intended for measurement rather than power delivery.
Polarity Dots and Terminal Markings
Some transformer symbols include polarity dots on windings. These dots indicate the relative instantaneous polarity between primary and secondary windings.
Polarity markings are essential for:
- Parallel transformer operation
- Correct phase relationships
- Proper CT and PT connections
Ignoring polarity markings can result in circulating currents, incorrect measurements, or protection misoperation.
Transformer Symbols in One-Line vs. Schematic Diagrams
Transformer symbols vary depending on the type of diagram being used.
- One-line diagrams use simplified symbols focused on system topology
- Schematic diagrams use detailed symbols showing individual windings and connections
Understanding the context of the drawing helps interpret how much detail the transformer symbol is intended to convey.
Common Misinterpretations of Transformer Symbols
A frequent mistake is assuming that all transformers provide isolation. Autotransformer symbols, if not recognized, can be mistaken for isolation transformers.
Another common issue is overlooking grounding symbols, leading to incorrect assumptions about neutral availability or ground-fault behavior. Careful attention to connection and grounding indicators is essential.
Conclusion
Transformer electrical symbols provide a compact but powerful way to communicate critical information about power systems. By understanding how to read symbols for transformer type, winding configuration, grounding, and function, engineers and technicians can interpret electrical diagrams with confidence.
Whether reviewing a high-level one-line diagram or a detailed schematic, recognizing transformer symbols is an essential skill in modern electrical power systems.
