Every transformer nameplate states a kVA rating, and nearly every facility eventually asks how firm that number is. The honest answer is that the rating is a thermal contract, not a physical wall: a dry-type transformer can carry more than its nameplate under defined conditions and for limited periods, and it pays for the privilege in insulation life. Understanding that exchange is what separates managed loading from slow-motion equipment damage.
Can You Overload a Transformer?
Yes — within limits, for limited time, and never for free. A dry-type transformer does not fail the moment load crosses 100% of nameplate. What happens instead is thermal: winding temperatures climb above their design values, and the insulation system ages faster than intended. Because insulation aging accelerates roughly exponentially with hot-spot temperature, a modest overload under favourable conditions may cost very little life, while a heavy or prolonged one consumes it quickly. Overloading is therefore an engineering decision about how much insulation life to spend and which conditions justify spending it — not a question of whether the transformer will visibly tolerate the load today. It usually will. The cost arrives later, as a shortened service life or a premature failure.
What the Nameplate Guarantees — and What It Doesn’t
The nameplate kVA is a continuous rating under the standard’s usual service conditions: the transformer can carry rated current indefinitely, without exceeding its rated winding temperature rise, in ambient air that does not exceed 40°C and averages no more than 30°C over 24 hours, at altitudes up to 1,000 m. Operated within that envelope, the insulation system delivers its expected service life. Selecting the rating for a new installation is covered in our transformer load calculation guide; this article addresses the other side of the question — what an installed transformer can carry beyond it.
What the nameplate does not describe is the actual installation. A mechanical room that reaches 45°C on summer afternoons, a blocked ventilation path, an elevation site, or the loading history of the last six hours all change the real, present-tense capacity — how much the transformer can carry right now without exceeding its temperature limits. The nameplate deliberately standardizes those conditions away, which is exactly why two identical transformers can have materially different overload headroom on the same afternoon.

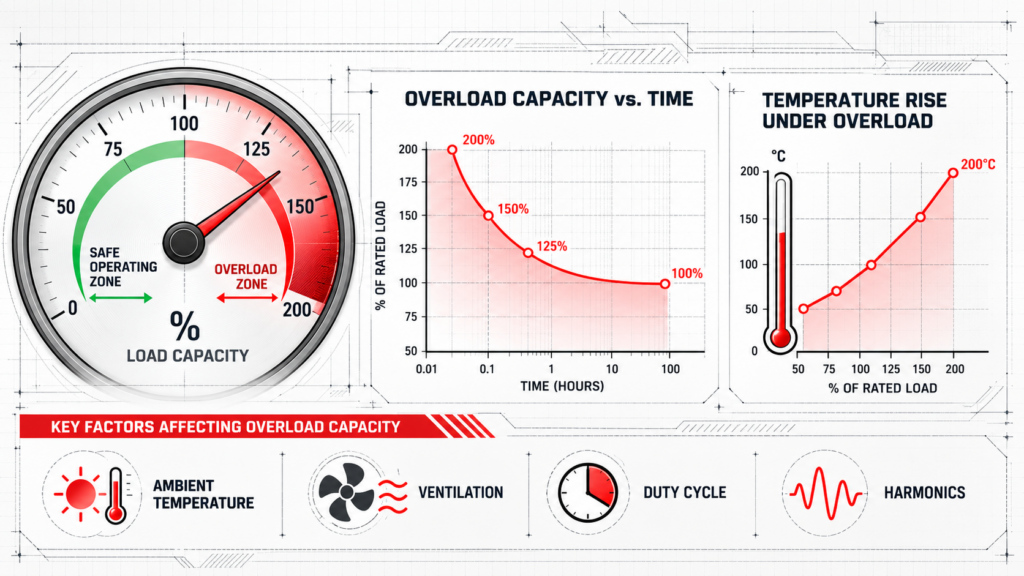

What Determines How Much You Can Safely Overload
Ambient Temperature at the Installation Site
Rated temperature rise sits on top of ambient temperature, and the insulation limit applies to their sum. Ambient above the standard basis consumes thermal margin before any overload begins; ambient below it creates margin. This is why the daily and seasonal profile matters: an overload that is tolerable on a winter night may not be on a summer afternoon in the same room.
Pre-Loading History — How Hot the Unit Already Is
Windings heat and cool over thermal time constants measured in hours, so the temperature at the start of an overload depends on what the transformer was doing before it. A unit emerging from light load starts cool and can absorb an overload while its temperature climbs toward the limit; a unit already at full operating temperature has no stored margin. Duration matters as much as magnitude.
Temperature Rise Class
Dry-type transformers are commonly designed at different rated temperature rises on the same insulation system. A lower-rise design runs cooler at rated load, leaving deliberate thermal headroom between operating temperature and the insulation limit — the principal design lever for loading flexibility. On the common 220°C insulation system, that headroom has a well-established practical meaning:
| Design Rise (220°C System) | Loaded to the Temperatures Of | Typical Continuous Capability |
|---|---|---|
| 80°C rise | 115°C rise | ≈15% above nameplate |
| 80°C rise | 150°C rise | ≈30% above nameplate |
| 115°C rise | 150°C rise | ≈15% above nameplate |
These are typical capabilities, not universal guarantees. They assume the standard ambient basis, they apply only when the complete unit — windings, leads, terminations, taps, and accessories — is designed for the additional current, and the overcurrent protection must accommodate the loading. The capability of a specific transformer should be confirmed with the manufacturer rather than assumed from the rise class alone.
Ventilation and Enclosure Type
Self-cooled ratings assume free circulation of cooling air. A cramped electrical room, dirty louvres, a restrictive enclosure, or direct sun exposure raises the effective ambient the windings see and shrinks overload capability accordingly. Where forced-air cooling is fitted, the fan-cooled rating changes the picture — under the manufacturer’s stated conditions.
Installation Altitude
Above roughly 1,000 m, thinner air removes less heat, and capacity or ambient limits are adjusted per the manufacturer’s data and the applicable standard. A transformer with comfortable margin at sea level may have none at elevation.
The IEEE C57.96 Loading Guide
IEEE C57.96, the loading guide for dry-type distribution and power transformers, provides the recognized framework for loading beyond nameplate. It describes three broad regimes. Under normal life expectancy loading, varying load and ambient are managed so that periods of below-rated operation offset periods above it, and total insulation aging remains near the design expectation. Planned loading beyond nameplate is anticipated and recurring — evaluated in advance, monitored, and accepted as a modest, managed life cost. Emergency loading trades a larger, faster life sacrifice for short-term capacity during a contingency, and is limited in both magnitude and duration.
The guide’s specific capability figures depend on the insulation system, the thermal model, and the transformer design, which is why they must be applied by an engineer using the manufacturer’s data for the actual unit — and why this article states the relationships rather than a universal multiplier table. No generic percentage transfers safely between transformers, and any planned loading beyond nameplate should also be checked against the protection scheme, since overcurrent devices are sized around rated current, not around a loading study.
Planned Overload vs. Emergency Overload
The distinction is intent. Planned cyclic loading is scheduled and managed: the spectrum of load and ambient is known, the aging cost is budgeted, and monitoring confirms the transformer stays within the evaluated envelope. Emergency loading exists to preserve service during a contingency — a failed parallel unit, a lost feeder — and accepts a larger aging cost precisely because it is rare and bounded. A useful discipline follows from that: if emergency overloads recur every month, they are not emergencies. They are evidence the installation is undersized, and the correct response is a capacity decision, not a loading guide.
| Loading Scenario | Typical Duration | Life Impact |
|---|---|---|
| Normal continuous loading | Ongoing | Rated insulation life expectancy |
| Planned (cyclic) overload | Limited and recurring, evaluated in advance | Modest, managed life reduction |
| Emergency overload | Short-term, contingency only | Larger life reduction, accepted to preserve service |
Specific magnitudes and durations for a given transformer are established from IEEE C57.96 and the manufacturer’s data — not from a generic table.
What Happens If You Overload Too Long
The first consequence is invisible: accelerated insulation aging. Every interval spent above design temperature consumes life disproportionately, the loss is cumulative, and none of it is recoverable when the load returns to normal — the thermal-aging mechanics are covered in our guide to transformer lifespan. The second consequence is operational: sustained loading near or above protective settings invites nuisance protective operation, since overcurrent devices are selected around rated current and coordinated curves, as explained in our transformer fuse sizing guide — and repeatedly upsizing protection to accommodate overload defeats the protection. The end state is insulation breakdown: thermally embrittled insulation loses dielectric and mechanical withstand, and the eventual failure is often triggered by an ordinary transient the insulation would once have survived. The failure modes are detailed in Transformer Failures: Causes, Faults and Prevention Tips.
How to Safely Monitor Your Transformer’s Load
Managed loading is measured loading. Trend recorded demand against nameplate over representative cycles — including the neutral on four-wire systems — and use winding-temperature indicators or RTD alarms where fitted, since temperature, not current, is the quantity the limits are written in. Periodic thermal imaging of terminations, bus connections, and enclosure surfaces under comparable load catches developing hot spots that current readings miss. And periodic insulation-resistance testing trends the condition of the insulation itself, revealing whether the loading history is leaving a mark; the broader program is laid out in our transformer maintenance checklist.
Rex Power Magnetics Perspective
Overload capability is design-specific, which is why the useful answer comes from the transformer’s own data rather than an industry rule of thumb. Rex Power Magnetics can evaluate an intended loading profile against the actual unit — rise class, insulation system, enclosure, cooling, and accessories — and, for new installations, design the margin in deliberately: lower-rise construction, forced-air provisions, or monitoring accessories, including on medium-voltage cast coil and VPI/VPE power transformers. For a first check of ratings and loading, our transformer calculators cover the sizing arithmetic this article deliberately leaves qualitative.
Conclusion
A dry-type transformer can be loaded past its nameplate — deliberately, temporarily, and with the cost understood. The nameplate is a promise of full service life under standard conditions; everything beyond it spends insulation life at a rate governed by temperature, which in turn depends on ambient, pre-load, rise class, cooling, and altitude. The difference between sound practice and slow damage is whether the overload was planned, evaluated against the manufacturer’s data, and monitored — or simply discovered.
