Proper grounding and bonding are fundamental to the safe and reliable operation of transformer installations. Although the terms are often used interchangeably, grounding and bonding serve distinct functions within an electrical system. When implemented correctly, they control fault current, stabilize voltage, improve surge protection performance, and protect personnel. When implemented incorrectly, they can lead to nuisance tripping, equipment damage, insulation stress, or serious safety hazards.
Understanding transformer grounding and bonding is therefore essential for engineers, electricians, and facility managers involved in system design and installation. This article explains the underlying principles, common grounding methods, and practical considerations that apply to transformer-based systems.
Grounding vs. Bonding: Clarifying the Difference
Grounding and bonding perform different but complementary roles.
Grounding establishes a deliberate connection between part of the electrical system and earth. Its primary purpose is to stabilize system voltage relative to ground and to provide a reference point that limits overvoltage during lightning events or line-to-ground faults.
Bonding, by contrast, connects metallic components together to ensure they remain at the same electrical potential. The goal of bonding is safety — minimizing touch voltage and ensuring that fault current returns effectively to the source so that protective devices can operate quickly.
In a transformer installation, grounding defines the system reference. Bonding ensures all conductive parts behave as one continuous, low-impedance path during a fault.
Why Transformer Grounding Is Required
When a transformer secondary supplies a new distribution system, it often creates what is known as a separately derived system. In these cases, the transformer neutral becomes the reference point for that system and must be intentionally grounded.
Grounding the transformer secondary serves several purposes. It establishes a stable voltage reference, allows ground-fault current to return to the source in a controlled manner, and ensures that overcurrent protection devices operate as intended. Without a defined grounding point, the system can “float,” meaning its voltage relative to earth may shift unpredictably under fault or surge conditions. This floating condition increases insulation stress and can expose equipment to damaging overvoltages.
Common Grounding Methods for Transformers
The method chosen to ground a transformer significantly affects system behavior during faults.
In a solidly grounded system, the transformer neutral is directly connected to earth. This configuration produces relatively high ground-fault current, which allows protective devices to operate quickly and decisively. It is widely used in commercial and institutional power systems where rapid fault clearing is desirable.
Resistance grounding introduces a resistor between the transformer neutral and ground. This limits ground-fault current to a controlled level, reducing equipment damage and arc-flash energy. In industrial environments, resistance grounding often provides a balance between protection sensitivity and equipment survivability.
High-resistance grounding further reduces fault current to very low levels, sometimes only a few amperes. This allows continued system operation during a single line-to-ground fault, provided detection systems are in place. While this approach reduces arc-flash hazard, it requires careful monitoring and maintenance.
Ungrounded systems, although historically used, are less common in modern installations due to the increased risk of transient overvoltages and difficulty detecting ground faults.
Bonding in Transformer Installations

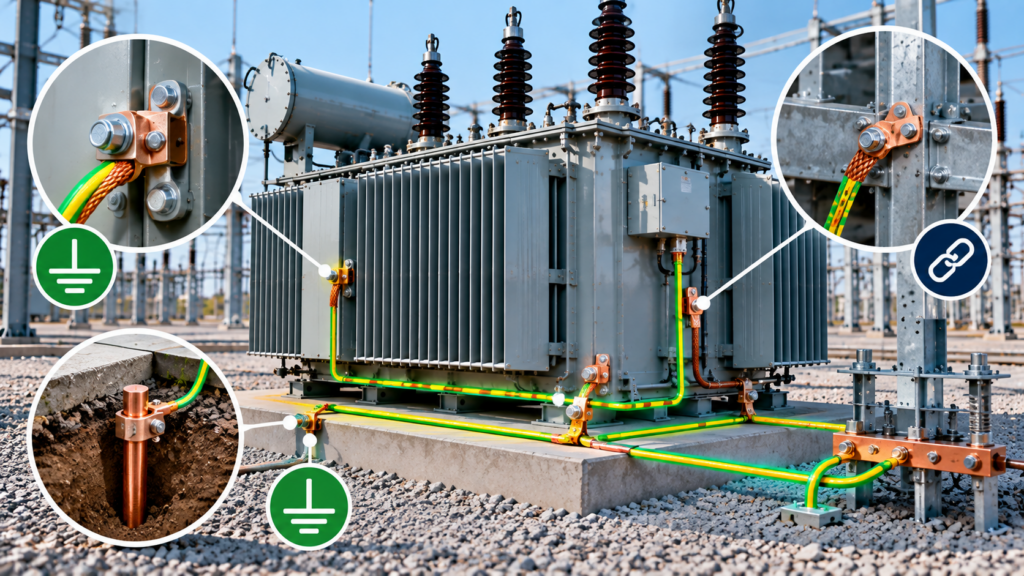

Bonding ensures that exposed conductive parts remain at equal potential, minimizing shock risk and ensuring effective fault clearing. In a transformer installation, this includes bonding the transformer enclosure, core, and metallic components to the equipment grounding conductor.
For dry-type transformers, bonding practices are particularly important. The transformer enclosure must be securely connected to the grounding system. If the secondary is a separately derived system, the neutral-to-ground bond must be made at one location only. Multiple neutral bonds downstream can create circulating currents, leading to overheating, nuisance tripping, and inaccurate protection performance.
A properly bonded system ensures that fault current flows along a predictable, low-impedance path back to the source.
Grounding and Fault Current Behavior
The chosen grounding method directly affects ground-fault current magnitude. A solidly grounded transformer allows high fault current to flow, enabling fast protective device operation. A resistance-grounded system limits that current, reducing mechanical and thermal stress on equipment.
These differences influence breaker selection, arc-flash calculations, and overall protection coordination. Grounding decisions must therefore be made with consideration of both safety and operational objectives.
Grounding and Surge Protection
Transformer grounding also plays a major role in surge protection performance. Surge arresters rely on a low-impedance path to ground in order to divert lightning or switching surges safely. If grounding conductors are long, undersized, or poorly connected, the effectiveness of surge arresters can be significantly reduced.
A well-designed grounding system minimizes residual voltage during transient events and helps protect transformer insulation from damage.
Code Compliance Considerations
Transformer grounding and bonding must comply with the applicable electrical code and local authority requirements. In Canada, installations are governed by the Canadian Electrical Code (CEC). In the United States, grounding and bonding practices must meet the requirements of the National Electrical Code (NEC).
Because grounding affects both safety and protection performance, compliance is not optional. Proper documentation and adherence to code requirements are essential components of transformer installation.
Conclusion
Transformer grounding and bonding are foundational to safe and stable power system operation. Grounding establishes a defined voltage reference and controls fault behavior, while bonding ensures metallic components remain at equal potential and that protective devices operate correctly.
By understanding grounding methods, their impact on fault current, and the importance of proper bonding, engineers and electricians can design and install transformer systems that perform safely and reliably for decades
